    You needed your Injection Mold Tooling when? Yesterday??

    The Direct Metal Laser Sintering (DMLS) process has been rapidly gaining recognition as perhaps one of the most powerful technologies available in the additive manufacturing world. The recent material parameter developments coupled with outstanding resolution and speed of fabrication are making DMLS cavity and core inserts a very successful tool that can be used to shorten lead times, reduce costs and push multiple projects through in the same amount of time that one project normally takes. i3D Manufacturing can print mold cavity and core inserts within days, giving end-use customers competitive advantages in real time-to-market, product development, and small batch production. Our Aluminum, Maraging Tool Steel and Stainless Steel mold tools can be post processed in all of the same ways as cast or machined parts, from polishing to welding to anodizing.

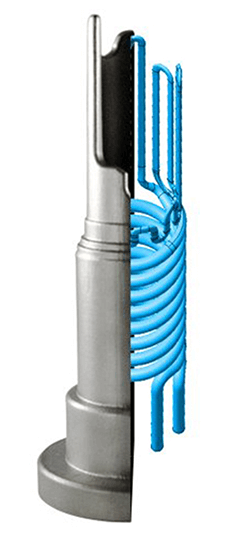

     EOS Mold Tool

    Interchangeable Cavity and Core Insert Blocks

    i3D™ owns North America’s first EOS M290 DMLS 3D Printing machine. As an official Material Process Applications (MPA) for EOS, i3D™ prides itself on its DMLS material and 3D print application innovations. Our interchangeable mold tool cavity and core universal base provides injection molders flexibility in switching out cavity and cores in small and medium batch runs at economical tooling and change-over costs.

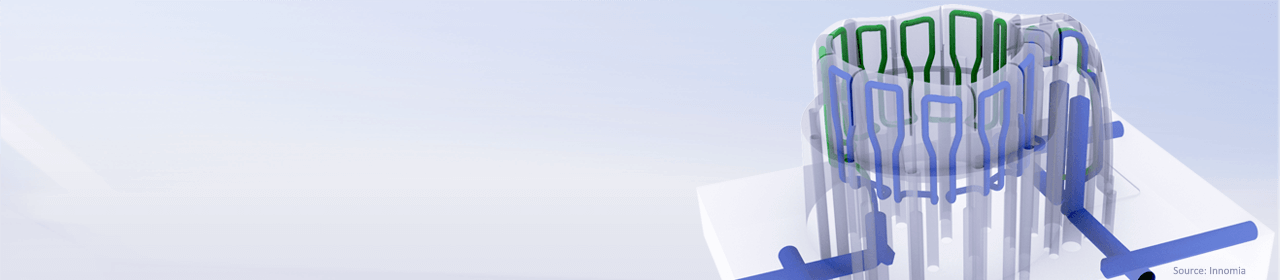

    With the latest, highest quality equipment i3D™  is able to achieve densities at nearly 100%, allowing for any finish requirements to the various 3D printed cavity and cores. Lattice and honeycomb designs specially tailored for optimal part cooling and heating add more value to the mold block design options. Injection molders can offer their clients tool design, manufacture, and part production in as little as 3 weeks. The process is all on-shore, protecting customer designs and avoiding costly tool change expense. Rapid Injection Tooling is often used as a bridge between prototyping and production but, not always. If you have low volume injection molding requirements, rapid tooling could be the answer for you.

    Aluminum (AlSi12)
    AlSi12 is our most common DMLS Aluminum powder and is perfect for projects with good thermal and low weight considerations. It is an optimal metal for parts with thin walls and complex geometries
    Maraging “Tool” Steel (MS1)
    Our Maraging Steel powder has excellent strength and mechanical properties. MS1 is a pre-alloyed, ultra high strength powder most commonly used for tooling applications. Its chemical composition corresponds to U.S. 18% Ni, Maraging 300, European 1.2709 and German X3NiCoMoTi 18-9-5. After heat treatment, MS1 typically has a 50-53 HRC.
    Stainless Steel (PH1)
    PH1 is a medical grade, sterilisable, corrosion resistant steel. It is primarily used in Medical, Firearms, Energy and Automotive applications. After heat treatment, PH1 hardens to 40-45 HRC. Our Stainless steel equivalents include 15-5, 17-4 and 316. Parts made from EOS Stainless Steel PH1 can be machined, spark eroded, welded, micro shot peened, polished and coated if required.
