by Erin Stone

Heat Sinks are an Ideal DMLS Application

Conformal cooling channels manufactured out of 6061 Aluminum open up amazing possibilities for heat sink applications. Direct Metal Laser Sintering (DMLS) metal 3D printing cost effectively allows aerospace, oil & gas, and automotive engineers not only to easily manufacture cooling channels, but to produce conformal micro channels that traditional manufacturing cannot achieve. Since DMLS powder is a 6061 Aluminum equivalent, the thermal conductive properties are also well matched. With held tolerance’s off the machine of +/- .004 and a process that builds parts with highly complex internal geometries, compact heat sinks that maximize surface area and air flow are possible. DMLS melts metal powder layers together to nearly 100% density, also making these innovative heat sinks manufacturable using 3D metal printing.

Heat Sink

Study Shows DMLS Most Effective Way to Produce Heat Sinks

A recent Plunkett Associates study looked at a variety of methods to build more efficient heat sinks and it concluded that, “The five best performing heat sinks were built using DMLS.”  They further concluded that all five cases showed a consistent heat source temperature when compared to traditional extruded and stamped 2D processes. A different IOP Science study examined the impact of DMLS surface roughness on heat sink performance and concluded, ” Our results offer an evidence of the possible impact of DMLS on electronic cooling since a 50% and 20% enhancement (compared to milled samples) is observed for flat and finned heat sinks, respectively… These results open the way for a huge boost in the technology of electronic cooling by DMLS.”

i3D MFG™ has produced several successful heat sink projects for a variety of aerospace and UAV companies using our DMLS Aluminum. In addition to the conformal cooling channels and the surface roughness advantages, client can also produce multiple designs on one build for testing and then come back and do production runs on the bets performing design. i3D™ also 3D prints in Titanium, Stainless Steel, Maraging Steel, and Inconel.

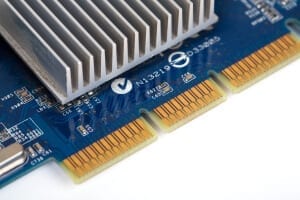

Video card close up on isolated white background
